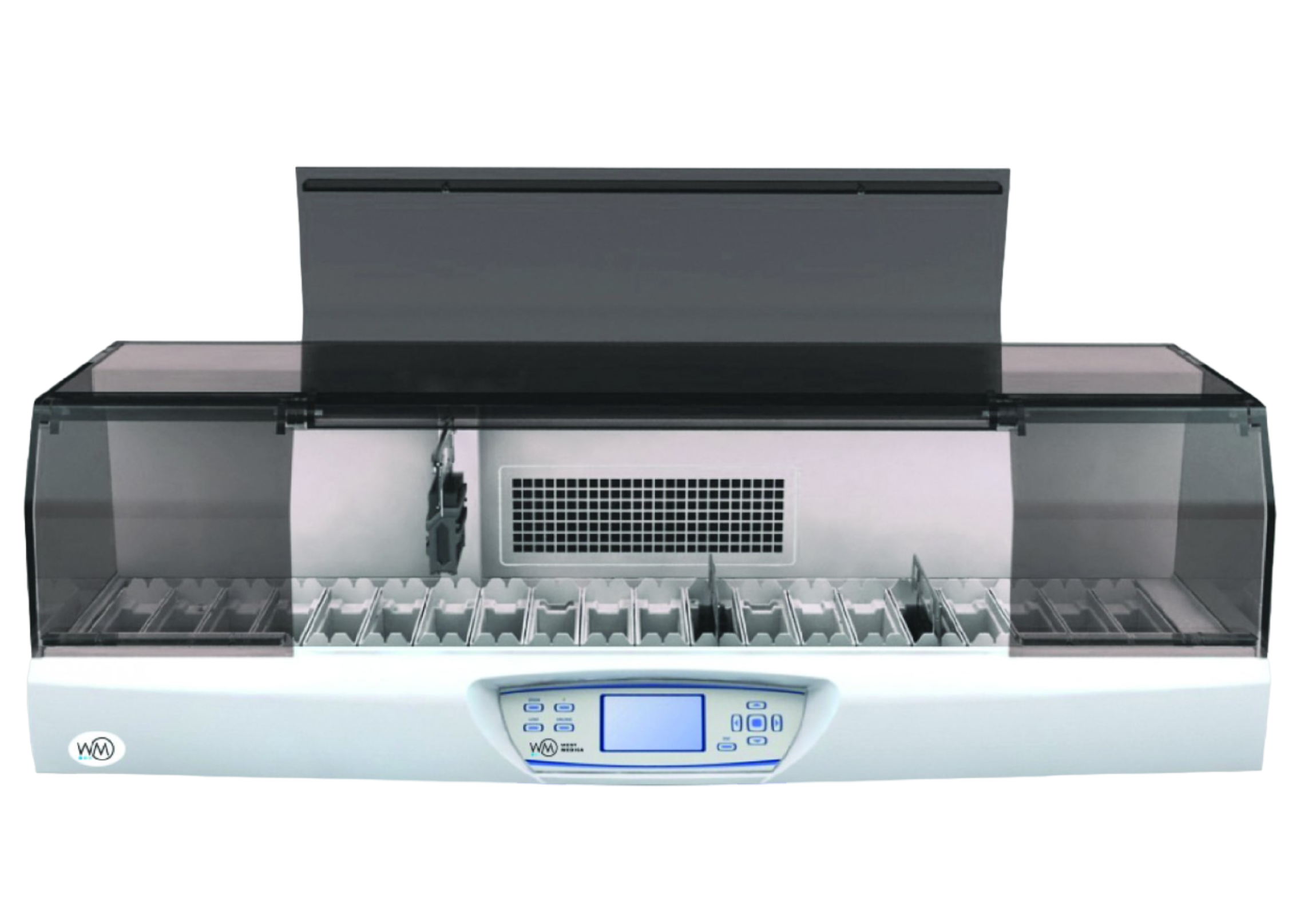

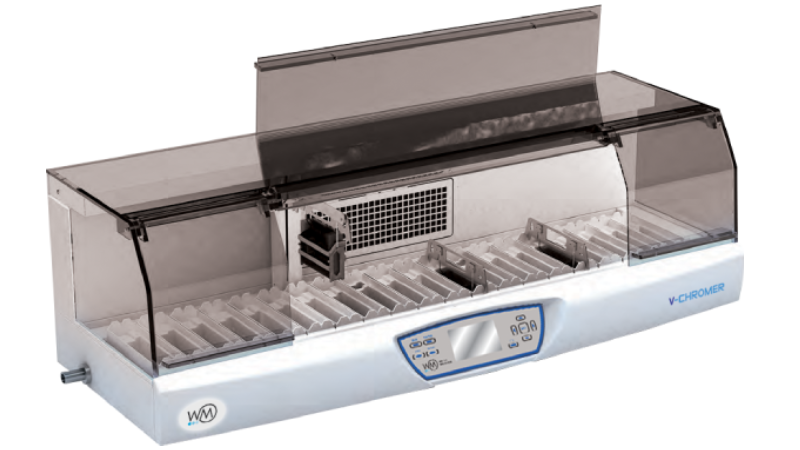

V-Chromer III

Automated multistainer for veterinary. Standardized staining of microscopy slides with the ability to select and customize protocols.

Go to the manufacturer`s website

Main features

  • Open system for work with reagents of various manufacturers
  • Simultaneous staining according to different staining protocols
  • Compatible with automated coverslipping equipment
  • Staining process is monitored continuously on a screen
  • Personnel protection when working with stains

Different clinical applications

— Cytology
— Hematology
— Microbiology
— Histology

Staining in 3 easy steps

Step 1

Place the slides into the holder

Step 2

Run the automated staining cycle

Step 3

Get the slides with standardized staining

Specifications
Reagents Open system for work with reagents of various manufacturers
Staining capacity Loading up to 5 holders simultaneously, up to 30 slides each
Number of programs Up to 2 programs simultaneously, up to 50 steps each
Number of reagents Up to 52 (32 preprogrammed reagents and 20 user-specified)
Immersion time From 1 sec to 59 minutes 59 sec per step
Total stations 20
Reagent stations Up to 18, volume 300 ml
Wash stations Up to 3
Drying stations 1, temperature 30 to 70 °C
Removal of hazardous fumes Fume extraction fan with charcoal filter
Nominal voltage 100–240 V / 50¬–60 Hz
Battery autonomy Up to 2 hours
Display LCD, 4/3-inch
Instrument Multistainer
