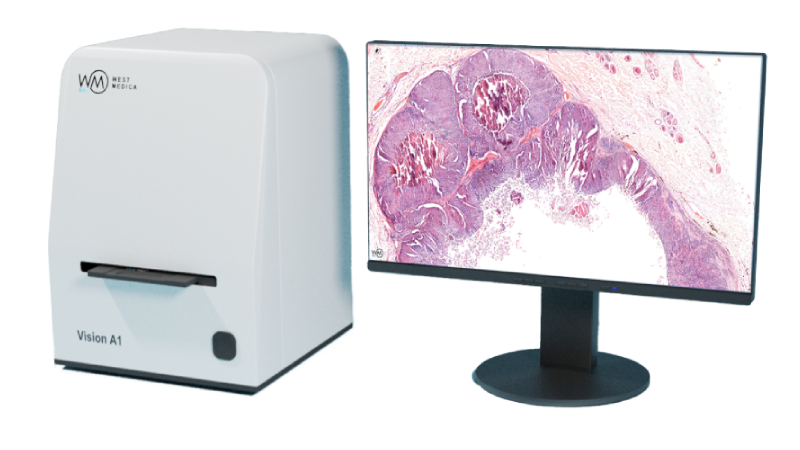

Vision A1 | Vision Slide Vet

Digital slide scanner for veterinary. Automatic scanning and creation of high-quality digital slides.

Go to the manufacturer`s website

Main features

  • Digital cytology and histology
  • Automatic sample scanning and creation of a digital slide
  • Automated microscopy

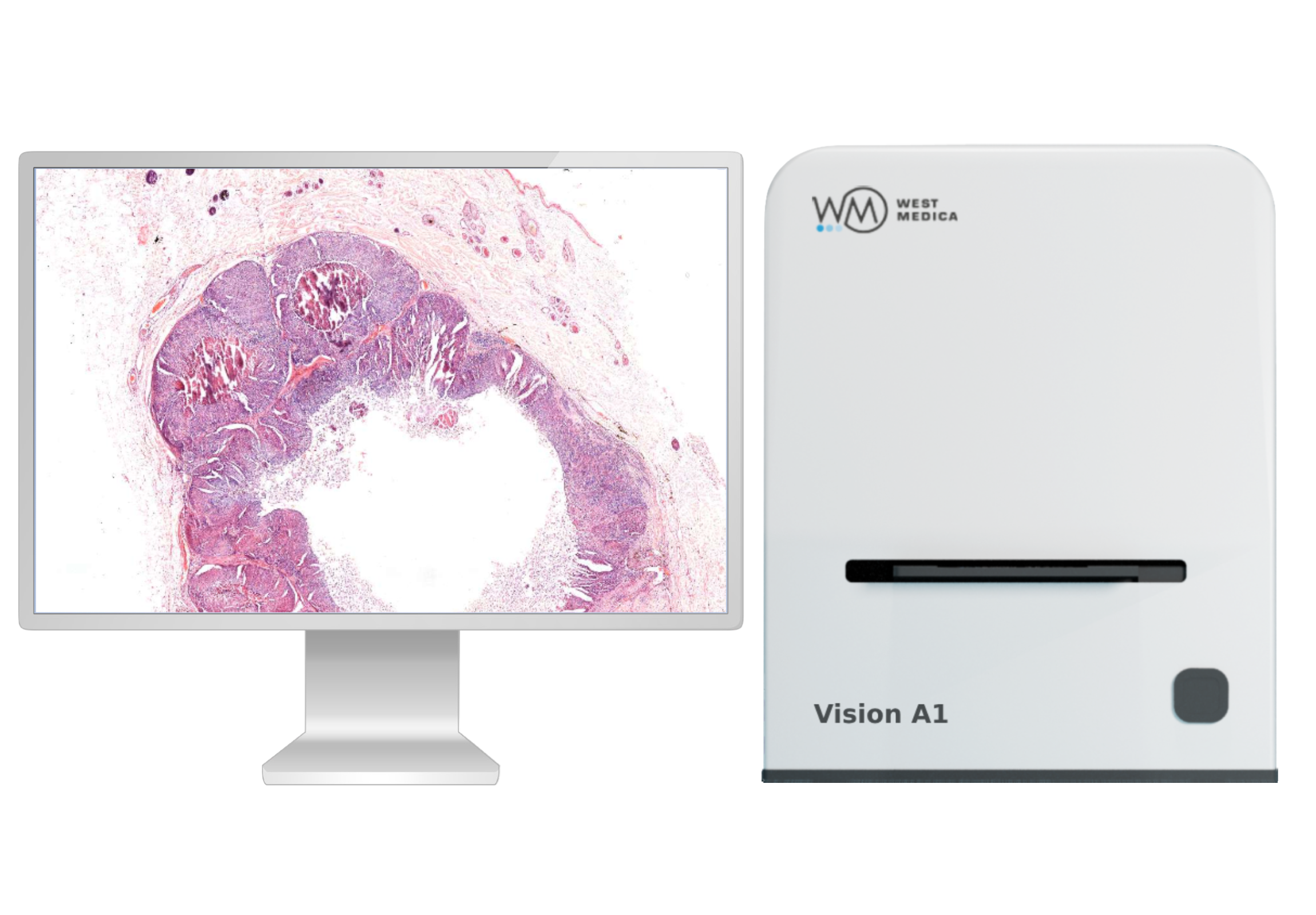

Convenient work with digital slides

Automatic creation of high-quality slides. The whole space is given to digital slide viewing.

Scanning in 3 easy steps

Step 1

Place the slide in the slide holder

Step 2

Insert the holder into the scanner and start scanning of the slides

Step 3

Get a result

Specifications
Application module Vision Slide Vet
Module for viewing and sharing digital slides Pathoview
Scanning Automatic
System components Scanning block, Workstation, Monitor, External barcode reader, Built-in label reader (option)
Objective 20х/0.75 Oil
Number of slides 1
Barcode support 1D, 2D
Illumination method Brightfield
Microscopic slide Standard 75x25 mm, thick 1.1 mm
Communications Bidirectional connection to LIS, LIS2-A2 (ASTM), HL7
Database Connection of several systems into one database; archiving via export to external media
Power supply 110–240 W/50–60 Hz
Working temperature 15–30 °С
Humidity 20–80 %

See also

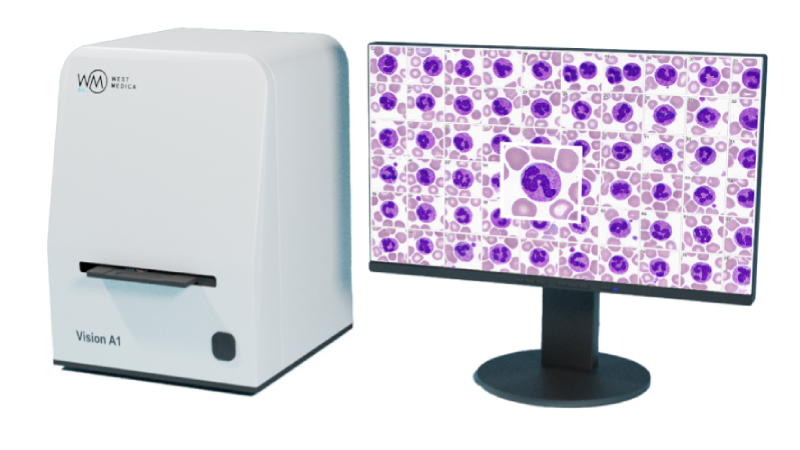

Vision A1 | Vision Hema Vet

Digital cytology and hematology
