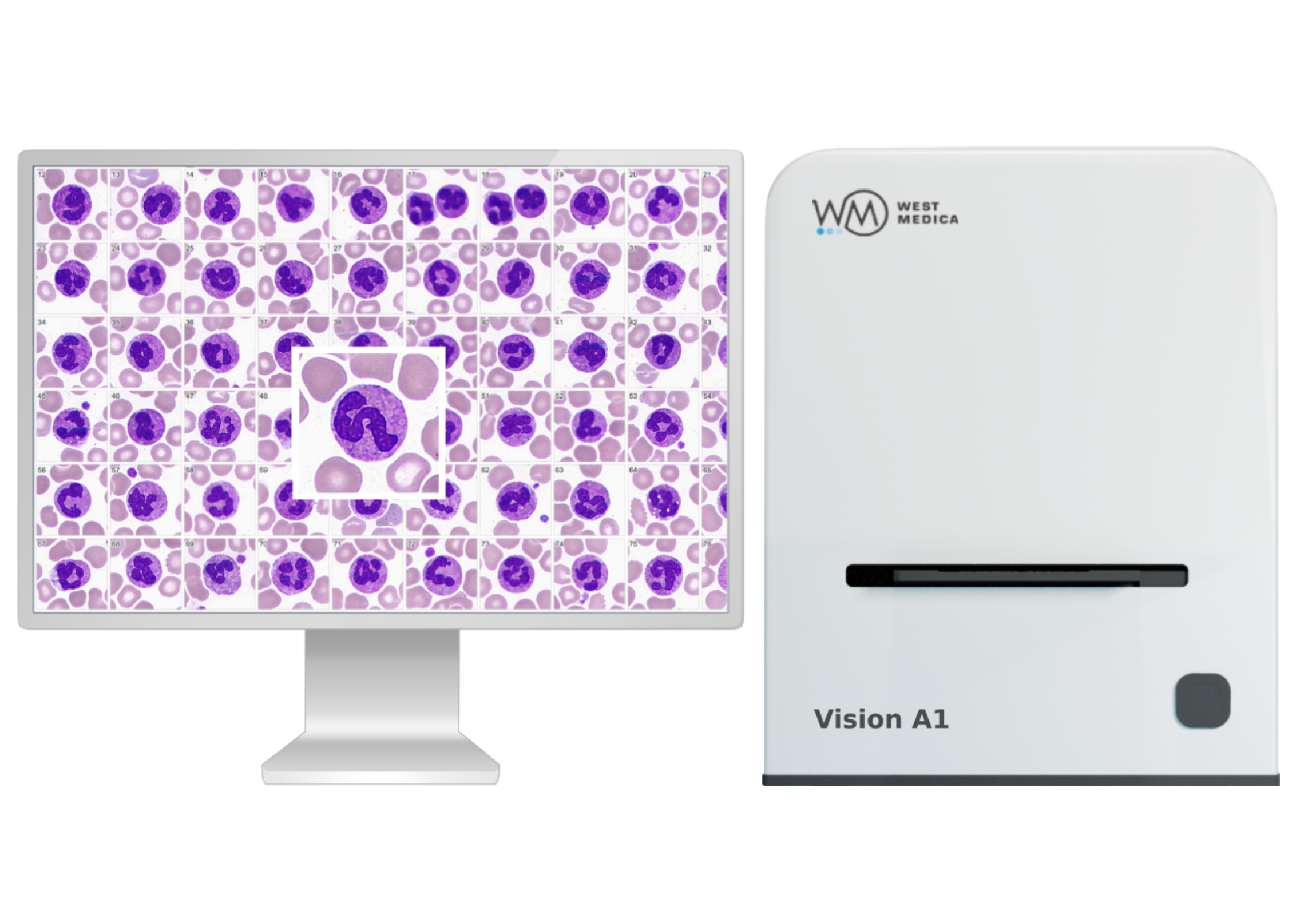

Vision A1 | Vision Hema Vet

Digital scanning analyzer for hematology. Automatic animal blood cells analysis.

Go to the manufacturer`s website

Main features

  • Automatic identification of animal blood cells
  • Digital cytology and hematology
  • Automated microscopy

Accurate results

Vision A1 provides accurate results of early diagnostics that provide an opportunity to prevent diseases in the initial stages.

Scanning in 3 easy steps

Step 1

Place the slide in the slide holder

Step 2

Insert the holder into the scanner and start scanning of the slides

Step 3

Get a result

Specifications
Application module Vision Hema Vet
Additional modules Vision Extended RBC Vet, Vision Extended PLT Vet
Module for viewing and sharing digital slides Pathoview
Scanning Automatic
System components Scanning block, Workstation, Monitor, External barcode reader, Built-in label reader (option)
Objective 60х Oil
Number of slides 1
Barcode support 1D, 2D
Illumination method Brightfield
Microscopic slide Standard 75x25 mm, thick 1.1 mm
Communications Bidirectional connection to LIS, LIS2-A2 (ASTM), HL7
Database Connection of several systems into one database; archiving via export to external media
Power supply 110–240 W/50–60 Hz
Working temperature 15–30 °С
Humidity 20–80 %

See also

Vision A1 | Vision Slide Vet

Digital cytology and histology
